Aqua Medic AM PRO 50

Name: Aqua Medic AM PRO 50
Brand: Aqua Medic
SKU: 1988
Price: 484.9 EUR
Availability: BackOrder

Aqua Medic

484,90 €

Sisältää alv:n

Tilaustuote, toimitusaika norm. muutama viikko

Jaa

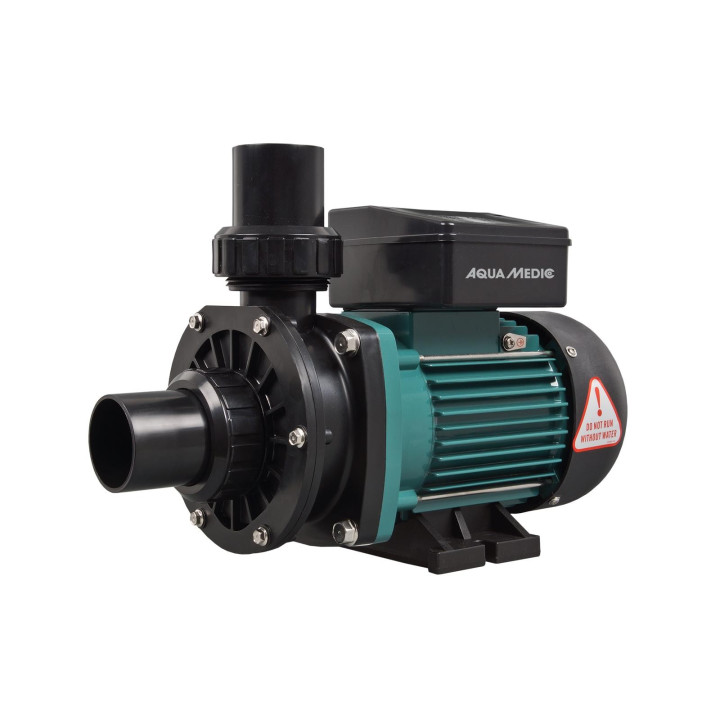

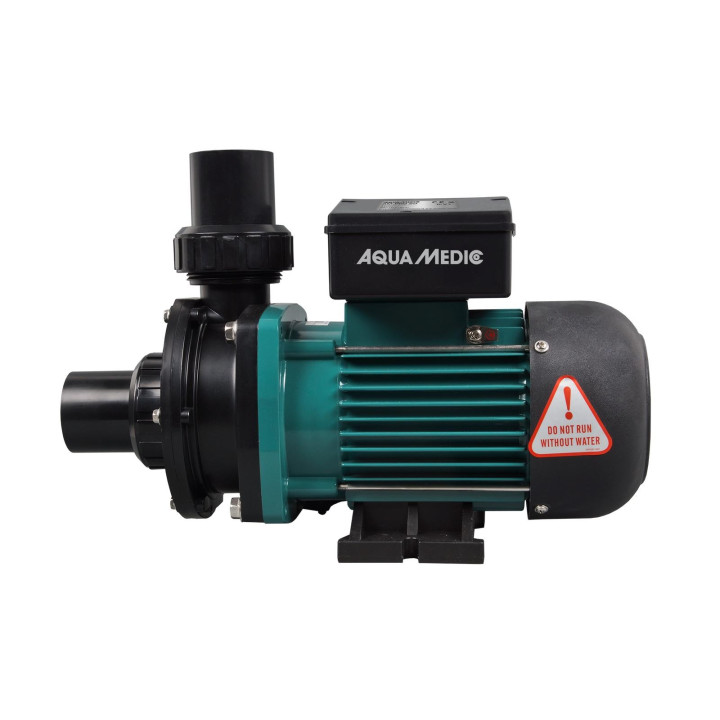

Circulation pump AM PRO 50, 75, 100

The circulation pumps in the AM PRO series are powerful with high performance. They have low energy consumption and operate at a low decibel volume. Minimal maintenance is necessary. The AM PRO pumps have a plastic housing. The axle is sealed with a mechanical seal. The pumps must be dry mounted.

Features:

- Asynchronous, two-pole motor

- Protection type IP X5

- Integrated overload protection

- Highly effective cooling element for optimal heat dissipation

- Not self-extracting

Type	AM PRO 50	AM PRO 75	AM PRO 100
Power (KW) app.	0.55	0.75	0.90
Power (PS) app.	0.50	0.75	1.00
Power consumption (A) app.	2.5	3.5	4.7
Power supply	220-230 V / 50 Hz
Protection class	IP X5
Sound level (dB) app.	60	60	65
Connections suction and pressure side	1.5"/50 mm	1.5"/50 mm	1.5"/50 mm
Weight (kg) app.	7.3	8.2	9.1

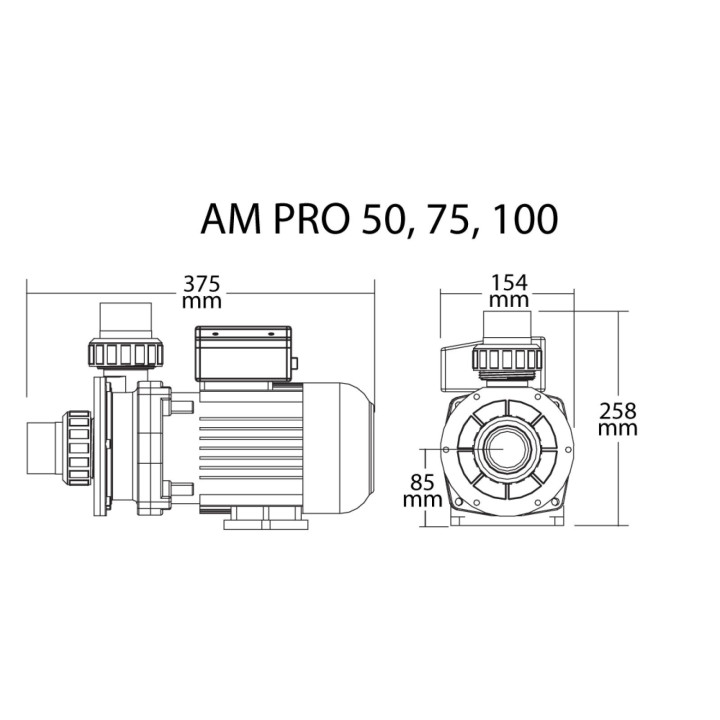

Dimensions (l x w x h) mm, app.	375 x 154 x 258

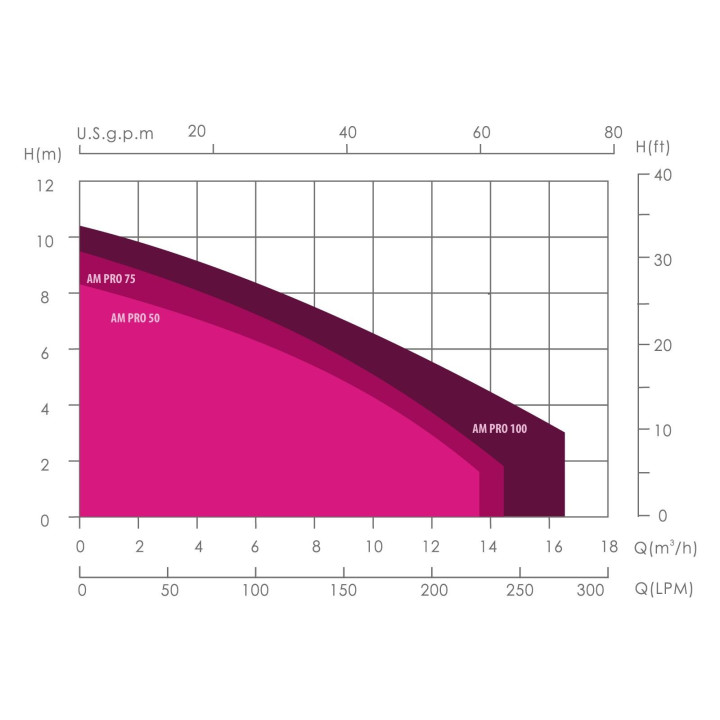

Flow rate
^m3/h at 2 m pumping head	13.2	14.4	17.0
m³/h at 4 m pumping head	10.3	11.3	13.6
m³/h at 6 m pumping head	6.6	8.6	9.8
m³/h at 8 m pumping head	1.0	4.0	5.1
