Aqua Medic AM PRO 75

Name: Aqua Medic AM PRO 75
Brand: Aqua Medic
SKU: 1990
Price: 572.9 EUR
Availability: BackOrder

572,90 €

Aqua Medic AM

572,90 €

Aqua Medic

Quantity :

This is an approximate conversion table to help you find your size.

If you already have purchased an item from our brand, we recommend that you select the same size as indicated on the table

Italian Size	French Size	Spanish Size	German Size	UK Size	USA Size	Japanese Size
34	30	30	30	4	00	34
36	32	32	32	6	0	36
38	34	34	34	8	2	38
40	36	36	36	10	4	40
42	38	38	38	12	6	42
44	40	40	40	14	8	44
46	42	42	42	16	10	46
48	44	44	44	18	12	48
50	46	46	46	20	14	50
52	48	48	48	22	16	52

Write review

Tilaustuote, toimitusaika norm. muutama viikko

Suojauskäytännöt

Vastuullinen toimija. Turvalliset maksutavat

Toimituskäytäntö

Laaja varastovalikoima, jonka ansiosta nopea toimitusaika.

Palautuskäytäntö

Kaikilla tuotteillamme on takuu. Muilla kun tilaustuotteilla on 14 vuorokauden palautusaika.

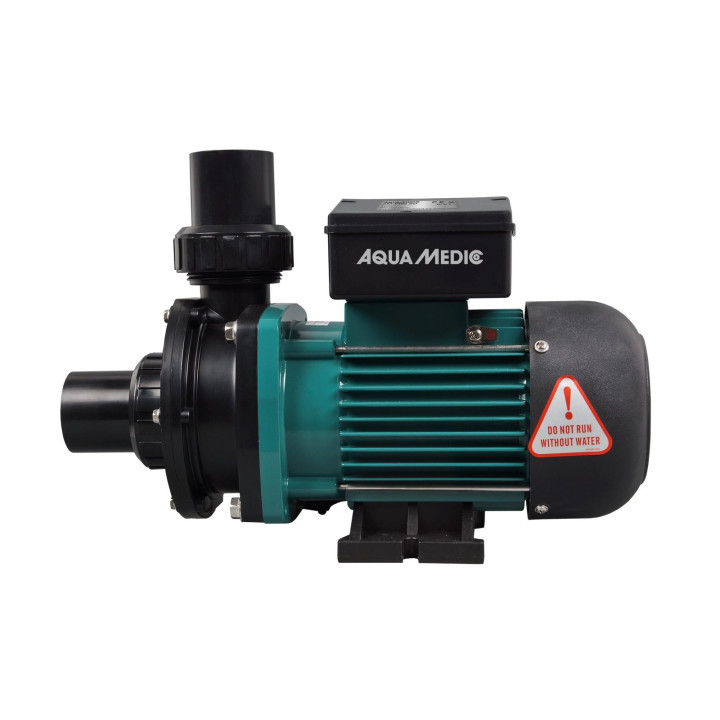

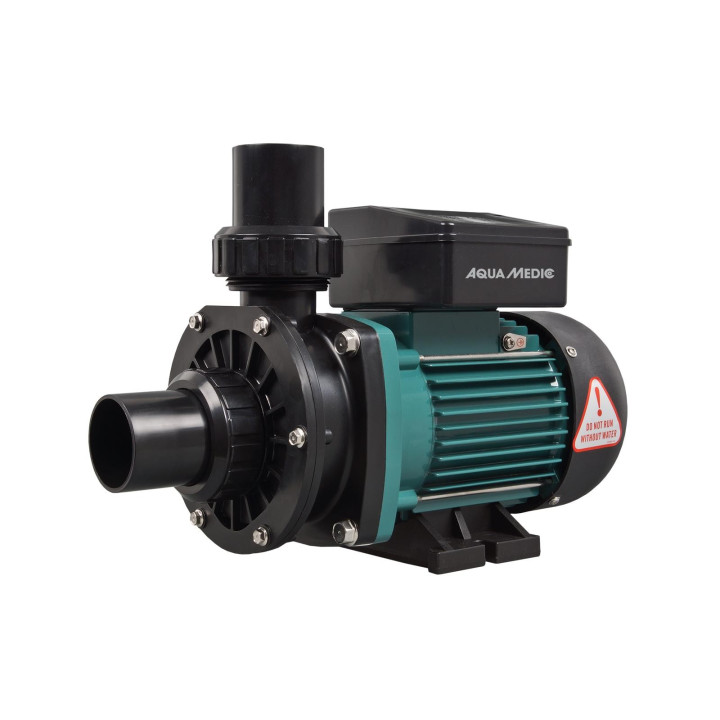

Circulation pump AM PRO 50, 75, 100

The circulation pumps in the AM PRO series are powerful with high performance. They have low energy consumption and operate at a low decibel volume. Minimal maintenance is necessary. The AM PRO pumps have a plastic housing. The axle is sealed with a mechanical seal. The pumps must be dry mounted.

Features:

- Asynchronous, two-pole motor

- Protection type IP X5

- Integrated overload protection

- Highly effective cooling element for optimal heat dissipation

- Not self-extracting

Type	AM PRO 50	AM PRO 75	AM PRO 100
Power (KW) app.	0.55	0.75	0.90
Power (PS) app.	0.50	0.75	1.00
Power consumption (A) app.	2.5	3.5	4.7
Power supply	220-230 V / 50 Hz
Protection class	IP X5
Sound level (dB) app.	60	60	65
Connections suction and pressure side	1.5"/50 mm	1.5"/50 mm	1.5"/50 mm
Weight (kg) app.	7.3	8.2	9.1

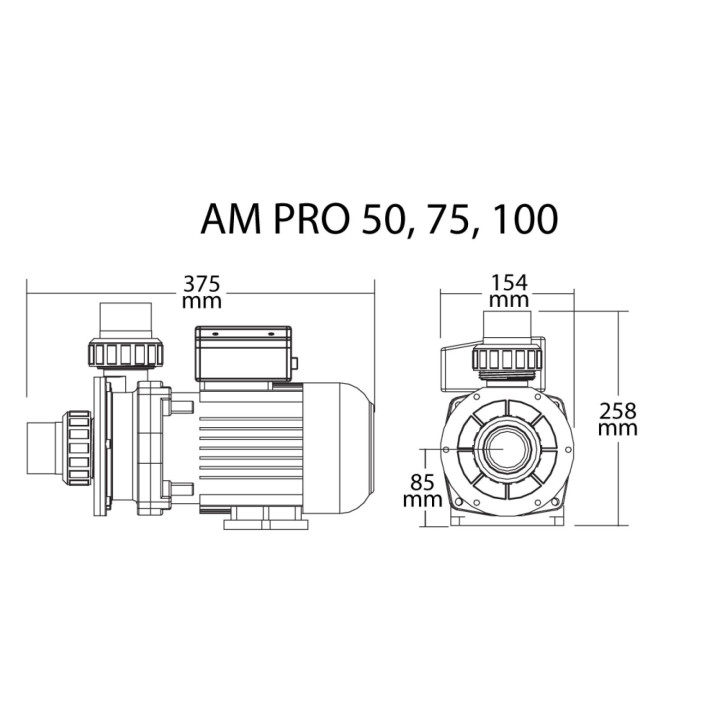

Dimensions (l x w x h) mm, app.	375 x 154 x 258

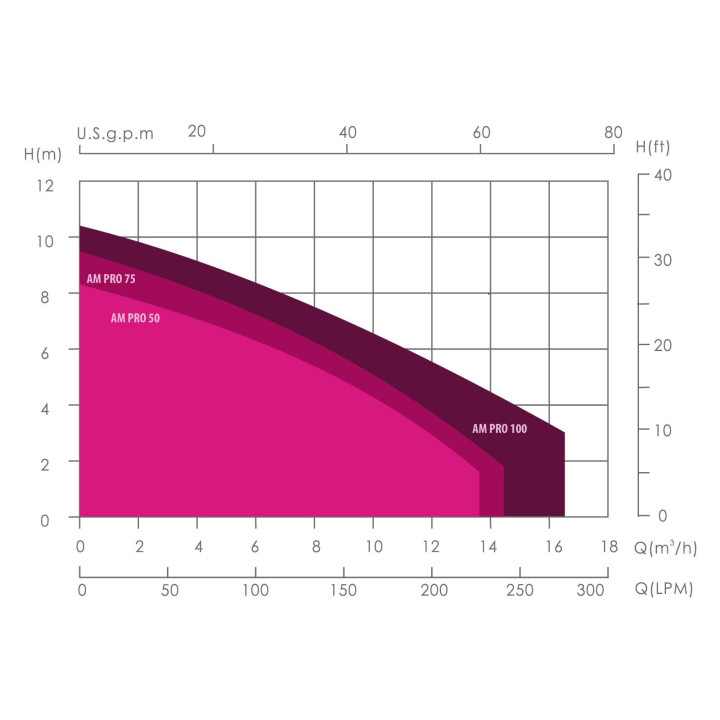

Flow rate
^m3/h at 2 m pumping head	13.2	14.4	17.0
m³/h at 4 m pumping head	10.3	11.3	13.6
m³/h at 6 m pumping head	6.6	8.6	9.8
m³/h at 8 m pumping head	1.0	4.0	5.1
