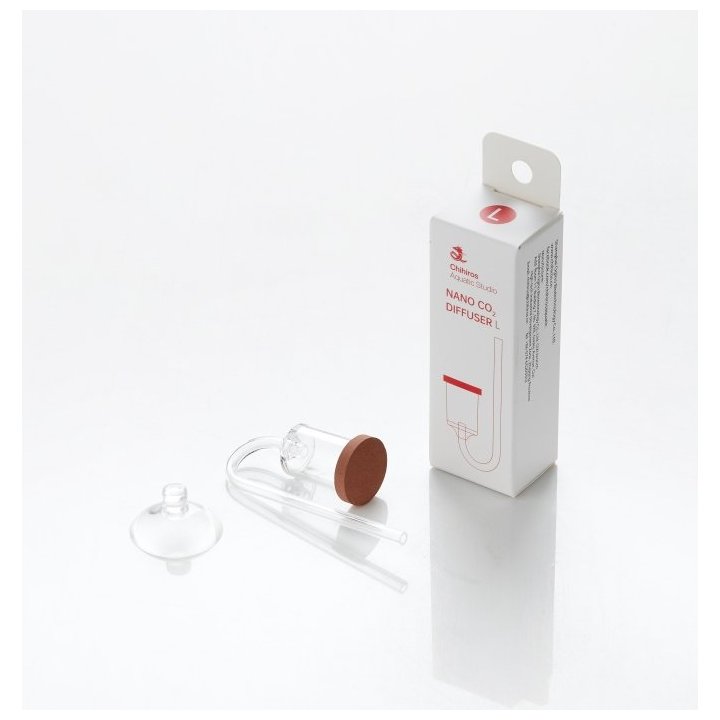

Chihiros Nano CO2 diffuusori (L)

The porous ceramic membrane creates a fine CO₂ mist with a large total contact area. Positioning the diffuser low in the aquarium near the filter outflow allows the water circulation to distribute the bubbles throughout the planted layout.

The L model provides the largest ceramic surface in the Chihiros Nano CO₂ Diffuser range and is intended for aquariums with greater carbon-dioxide demand.

Key features

• Internal CO₂ diffuser
• L model for large planted aquariums
• Recommended for aquariums above approximately 200 litres
• Fine-pore ceramic membrane
• Ceramic-membrane diameter: approximately 23 mm
• Produces a fine CO₂ mist
• Supports efficient gas dissolution
• Helps distribute CO₂ to aquatic plants
• Suitable for pressurised CO₂ systems
• Connection for 4/6 mm CO₂ hose
• Suction-cup installation
• Compact transparent acrylic body
• Suitable for large aquascaping layouts
• Overall length: approximately 81 mm
• Body width: approximately 30 mm
• Easy to remove for cleaning

Technical information

• Product: Chihiros Nano CO₂ Diffuser L
• Type: internal aquarium CO₂ diffuser
• Model size: L
• Recommended aquarium volume: above approximately 200 litres
• Ceramic-membrane diameter: approximately 23 mm
• Overall length: approximately 81 mm
• Body width: approximately 30 mm
• CO₂-hose size: 4/6 mm
• Diffusion element: fine-pore ceramic
• Body material: transparent acrylic
• Attachment: suction cup
• CO₂ source: pressurised system
• Water type: freshwater
• Integrated regulator: no
• Integrated bubble counter: no
• Integrated check valve: no
• Manufacturer: Chihiros Aquatic Studio

Installation

1. Rinse the diffuser and soak the ceramic membrane before use.
2. Connect pressure-resistant 4/6 mm CO₂ hose.
3. Install a check valve in the correct direction.
4. Attach the diffuser low on clean aquarium glass.
5. Position it near the filter outflow.
6. Keep the ceramic membrane fully submerged.
7. Open the CO₂ supply slowly.
8. Adjust working pressure and bubble rate gradually.
9. Allow the diffuser to stabilise.
10. Confirm fine and even bubble production.
11. Monitor aquarium pH, the CO₂ indicator and livestock.
