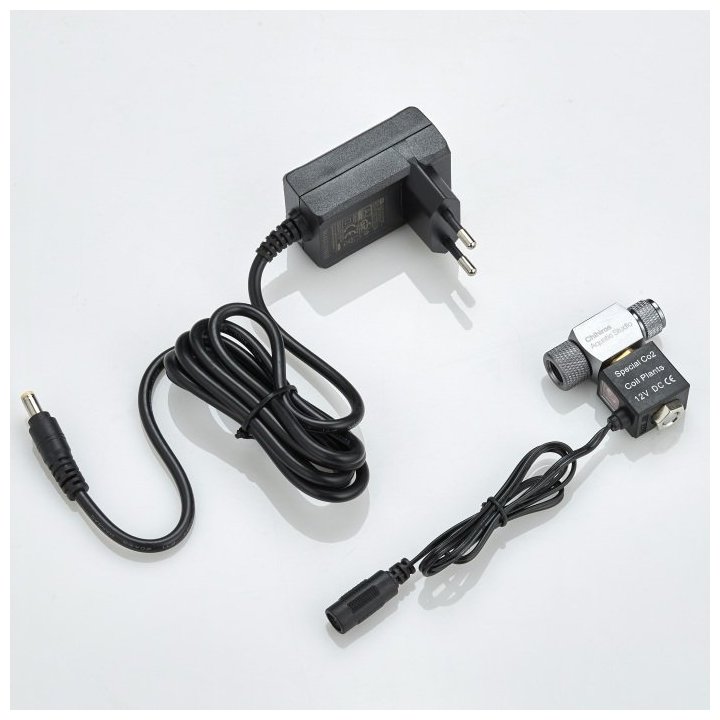

Chihiros CO2-magneettiventtiili

When powered, the solenoid opens the CO₂ line and allows gas to flow from the regulator to the diffuser or reactor. When power is removed, the normally closed valve stops gas flow automatically.

This enables CO₂ injection to be coordinated with the aquarium-lighting schedule. The system can start before the lights turn on and stop before the end of the lighting period, reducing unnecessary overnight gas consumption.

Key features

• Electric shut-off valve for aquarium CO₂ systems
• Automates CO₂ start and stop times
• Suitable for compatible Chihiros regulators
• Operates at 12 V DC
• Low power consumption
• Low heat production
• Normally closed design
• Closes automatically during a power failure
• Compatible with standard plug-in timers
• Compatible with smart plugs
• Expandable with a separate Chihiros Bluetooth controller
• Supports My Chihiros scheduling with a compatible controller
• Helps coordinate CO₂ injection with aquarium lighting
• Reduces unnecessary overnight gas consumption
• EU power supply included
• Intended for freshwater planted aquariums
• Regulator and Bluetooth controller sold separately

Technical information

• Product: Chihiros CO₂ Solenoid Valve
• Type: electric CO₂ shut-off valve
• Intended use: automatic control of a pressurised CO₂ system
• Operation: normally closed
• Operating voltage: 12 V DC
• Power adapter: 220–240 V, EU plug
• Standard timer control: yes
• Smart-plug control: yes
• Bluetooth control: with a separately available Chihiros controller
• App: My Chihiros with compatible controller
• Integrated needle valve: no
• Integrated regulator: no
• Bubble counter: no
• Intended application: freshwater planted aquariums
• Manufacturer: Chihiros Aquatic Studio
• EAN: 4043366500421

Installation

1. Close the CO₂-cylinder valve.
2. Disconnect the regulator from the power supply.
3. Release all remaining pressure from the system.
4. Confirm compatibility with the exact regulator model.
5. Install the required seals.
6. Attach the solenoid in the correct flow direction.
7. Do not overtighten the connections.
8. Connect pressure-resistant CO₂ hose.
9. Install a check valve in the correct direction.
10. Connect the included 12 V power supply.
11. Open the cylinder valve slowly.
12. Test every connection for leakage.
13. Power the solenoid and adjust the bubble rate.
14. Test scheduled opening and closing.
15. Monitor aquarium pH, the CO₂ indicator and livestock.
