Chihiros Extender CO2 -paineenalennin PRO Limited Edition

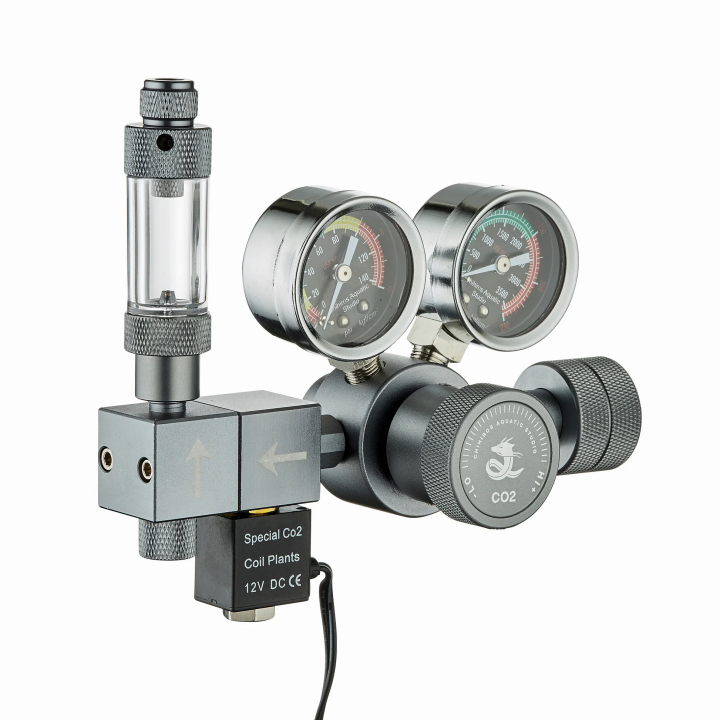

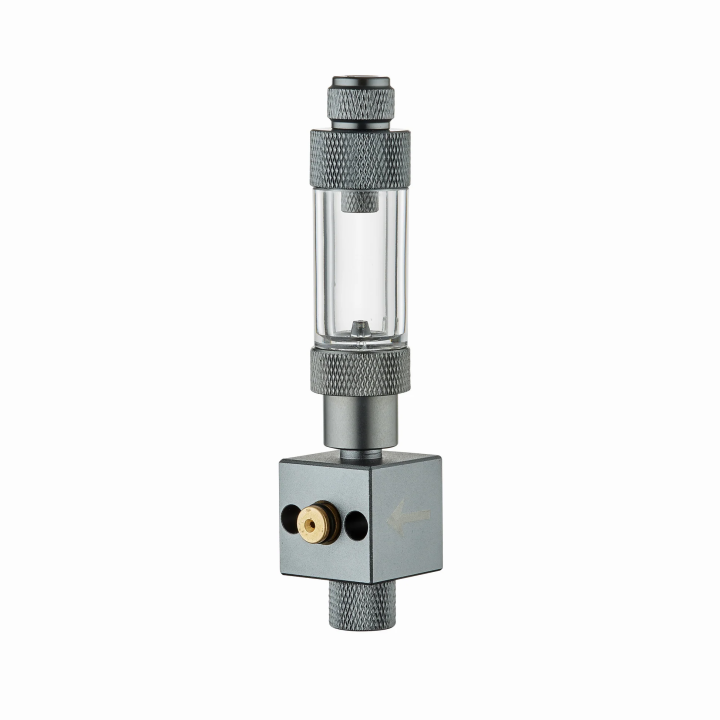

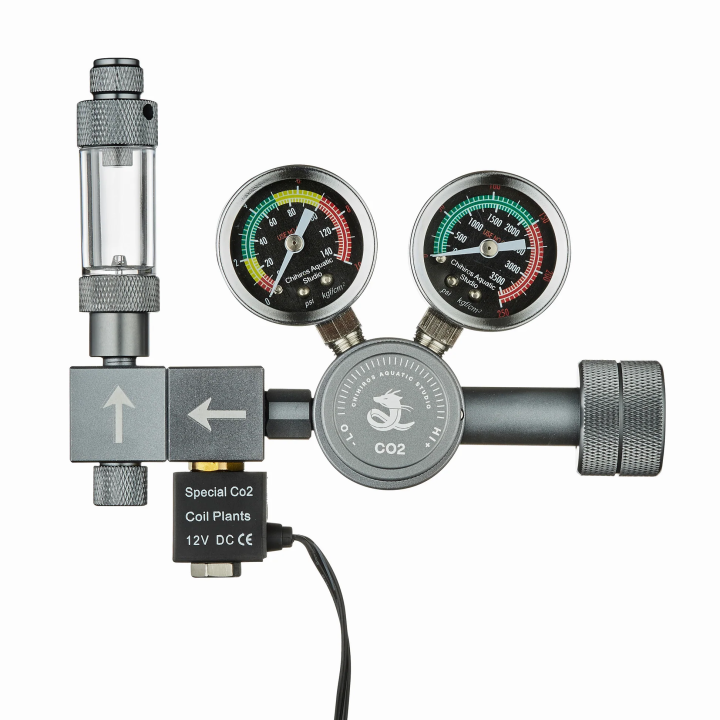

The Extender converts a compatible Chihiros regulator into a two-outlet CO₂ system. It attaches directly to the regulator and removes the need for a separate pressure reducer or universal manifold.

The additional outlet includes its own precision needle valve, enabling its bubble rate to be adjusted separately from the regulator’s original outlet. A transparent bubble counter provides immediate visual confirmation of gas flow.

Key features

• Expansion module for Chihiros CO₂ Regulator PRO Limited Edition
• Adds one additional CO₂ outlet
• Enables one cylinder to supply two aquariums
• Suitable for two-diffuser installations
• Dedicated precision adjustment valve
• Integrated transparent bubble counter
• Independently adjustable bubble rate
• Direct installation on the compatible regulator
• Dark Limited Edition finish
• Compact metal construction
• Suitable for pressurised aquarium CO₂ systems
• Designed for freshwater planted aquariums
• Main regulator sold separately
• CO₂ cylinder, hose and diffuser sold separately
• Does not include a separate solenoid valve

Technical information

• Product: Chihiros Extender CO₂ Regulator PRO Limited Edition
• Type: additional regulator outlet
• Intended use: pressurised aquarium CO₂ fertilisation
• Compatibility: Chihiros CO₂ Regulator PRO Limited Edition
• Additional outlets: one
• Flow adjustment: dedicated precision needle valve
• Bubble counter: integrated
• Operating pressure: determined by the main regulator
• Material: metal with transparent bubble-counter chamber
• Colour: dark metal
• Electrical connection: none
• Integrated solenoid: no
• Main regulator included: no
• CO₂ cylinder included: no
• Intended water type: freshwater planted aquariums

Installation

1. Close the CO₂-cylinder valve.
2. Disconnect power from the regulator’s solenoid.
3. Release all remaining system pressure.
4. Confirm that both pressure gauges indicate no pressure.
5. Remove the designated expansion-port plug.
6. Inspect and correctly position the supplied seal.
7. Attach the Extender without overtightening.
8. Fill the bubble counter as instructed.
9. Connect pressure-resistant CO₂ hose.
10. Install a check valve when required.
11. Close both fine-adjustment valves.
12. Open the cylinder valve slowly.
13. Test every connection for leaks.
14. Never use a flame to locate a gas leak.
15. Open the Extender valve gradually.
16. Adjust the bubble rate in small increments.
17. Allow the system to stabilise after each adjustment.
18. Monitor aquarium pH, the CO₂ indicator and livestock carefully.
