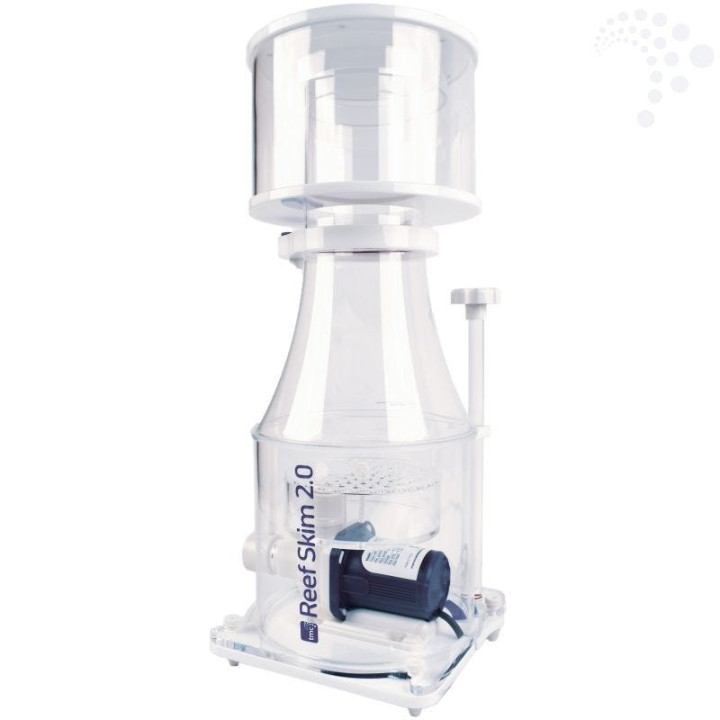

TMC Reef Skim 2.0 2250 DC valkuaisainevaahdotin

TMC Reef Skim 2.0 2250 DC is a high-capacity sump-mounted protein skimmer for demanding marine and reef aquarium systems. It removes dissolved organic compounds before they break down into nitrate and phosphate.

The skimmer is nominally suitable for systems up to approximately 2,250 litres. Practical capacity depends on fish stocking, feeding, coral sensitivity, and additional nutrient-export methods.

Adjustable DC pump

The Reef Pump SK DC provides adjustable, energy-efficient performance. Electronic speed control allows the air-and-water mixture to be matched to aquarium load and the desired skimming result.

Power consumption ranges from approximately 10 to 55 W. The pump operates at 24 V DC with a maximum current of approximately 2.29 A.

Feeding mode

The controller includes a feeding mode that pauses the pump temporarily. This helps prevent suspended coral food and supplements from being removed immediately.

Collection-cup filling should be monitored after feeding because foods and aquarium treatments may temporarily increase foam production.

Bubble-diffusion plate

The high-performance diffusion plate distributes fine bubbles evenly throughout the reaction chamber. This reduces turbulence, stabilizes the foam column, and maximizes air-to-water contact.

Base-mounted water outlet

Water exits through the base of the skimmer. This innovative design increases contact time, reduces operating noise, minimizes escaping microbubbles, and eliminates the need for a large external outlet assembly.

Quiet operation

An integrated air-intake silencer reduces venturi noise. The adjustable DC pump, balanced bubble plate, and base outlet contribute to quiet operation in noise-sensitive aquarium installations.

Compact sump footprint

The skimmer measures approximately 235 × 225 × 545 mm. Its compact footprint provides high-capacity skimming without occupying excessive sump space.

Leave sufficient clearance above and around the skimmer for collection-cup and pump removal.

Easy pump maintenance

The pump is designed for quick removal. Regularly clean the intake, impeller, impeller chamber, venturi, air hose, silencer, bubble plate, and collection-cup neck.

Calcium and salt deposits can reduce air intake and increase operating noise. Use a pump-safe cleaning solution and rinse all parts thoroughly.

Key features

• High-capacity protein skimmer
• Suitable for marine systems up to approximately 2,250 litres
• Designed for large reef and fish aquariums
• Adjustable Reef Pump SK DC
• Electronic speed controller
• Integrated feeding mode
• Power consumption of approximately 10–55 W
• 24 V DC operation
• Maximum current of approximately 2.29 A
• High-performance bubble-diffusion plate
• Uniform distribution of fine bubbles
• Base-mounted water outlet
• Increased air-to-water contact time
• Designed to minimize microbubbles
• Integrated air-intake silencer
• Quiet operation
• Compact 235 × 225 mm footprint
• Total height of approximately 545 mm
• Quick-removal pump
• Sump installation
• Product number 3385-EU
• GTIN/EAN 5027656554201

Technical information

• Product: TMC Reef Skim 2.0 2250 DC
• Maximum recommended aquarium volume: approximately 2,250 l
• Pump: adjustable Reef Pump SK DC
• Power consumption: 10–55 W
• Operating voltage: 24 V DC
• Maximum current: 2.29 A
• Dimensions: approximately 235 × 225 × 545 mm
• Installation: inside a sump
• Control: electronic output adjustment and feeding mode
• Product number: 3385-EU
• GTIN/EAN: 5027656554201

Package contents

• TMC Reef Skim 2.0 2250 DC protein skimmer
• Reef Pump SK DC
• Electronic pump controller
• Power supply
• Collection cup and lid
• Air-intake silencer
• Air hose
• Bubble-diffusion plate
• Model-specific connection components
• Operating and safety instructions

Installation and setup

1. Reserve at least 235 × 225 mm of sump floor space.
2. Leave sufficient clearance above the skimmer.
3. Position the unit on a stable and level base.
4. Confirm the recommended sump water depth from the instructions.
5. Install the pump, diffusion plate, and collection cup.
6. Connect the air hose and silencer.
7. Position the controller and power supply in a dry area.
8. Create a drip loop in the power cable.
9. Start the pump at a moderate setting.
10. Allow the skimmer to run in before final adjustment.
11. Increase the output gradually according to aquarium load.
12. Adjust the foam level for wet or dry skimming.
13. Monitor the collection cup during initial operation.
14. Clean the cup, air intake, and pump regularly.
15. Disconnect the equipment before maintenance.
