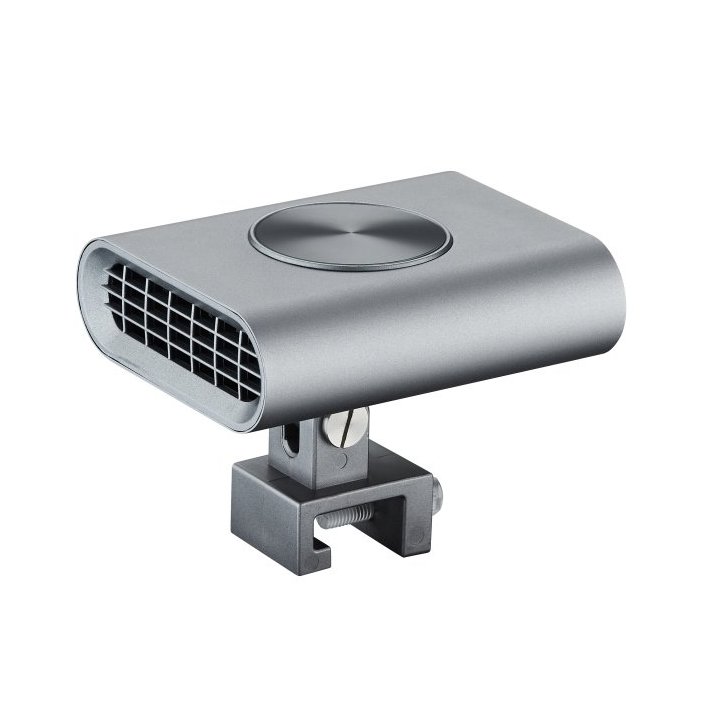

Chihiros Cooling Fan sis. Bluetooth 9 V (2,8 W) - ilman virtalähdettä

The fan mounts on the aquarium rim and directs airflow across the water surface. Depending on room temperature, humidity, aquarium size and ventilation, evaporative cooling can reduce the water temperature by approximately 2–4 °C.

The Bluetooth model is controlled through the My Chihiros app. Its external probe measures aquarium-water temperature, while built-in sensors monitor room temperature and humidity. Automatic mode can start and increase the fan speed according to configured temperature limits.

Key features

• Bluetooth-controlled aquarium cooling fan
• Evaporative cooling from the water surface
• Potential temperature reduction of approximately 2–4 °C
• My Chihiros app control
• Automatic temperature-based operation
• Water-temperature probe included
• Built-in room-temperature and humidity sensors
• Three adjustable fan speeds
• Quiet brushless motor
• Motor speed approximately 3800 rpm
• Rated input power 2.8 W
• Operating voltage 9 V DC
• Low energy consumption
• Adjustable aquarium-rim clamp
• Suitable for glass up to approximately 19–20 mm thick
• Suitable for aquariums up to approximately 60 cm long
• Suitable for freshwater and marine aquariums
• Power adapter not included

Technical information

• Product: Chihiros Cooling Fan Bluetooth Edition
• Type: evaporative aquarium cooler
• Control: My Chihiros app
• Wireless connection: Bluetooth
• Automatic mode: yes
• Water-temperature probe: included
• Ambient-temperature sensor: integrated
• Humidity sensor: integrated
• Fan-speed levels: 3
• Motor: brushless
• Motor speed: approximately 3800 rpm ±10%
• Rated input power: 2.8 W ±0.5 W
• Rated current: approximately 0.27 A
• Operating voltage: 9 V DC
• Estimated cooling effect: approximately 2–4 °C
• Recommended aquarium length: up to approximately 60 cm
• Maximum glass thickness: approximately 19–20 mm
• Dimensions: approximately 100 × 83 × 75 mm
• Housing: aluminium alloy
• Ingress protection: IP55
• Power adapter included: no

Installation

1. Mount the fan securely on an open section of the aquarium rim.
2. Direct the airflow across the water surface.
3. Keep the fan body safely above the water.
4. Position the temperature probe in a representative area.
5. Keep the probe continuously submerged.
6. Create a drip loop in the power cable.
7. Connect a compatible 9 V DC power supply.
8. Add the fan to the My Chihiros app.
9. Configure the start and maximum-speed temperatures.
10. Verify the reading with a separate thermometer.
11. Monitor evaporation and top up the aquarium as required.
