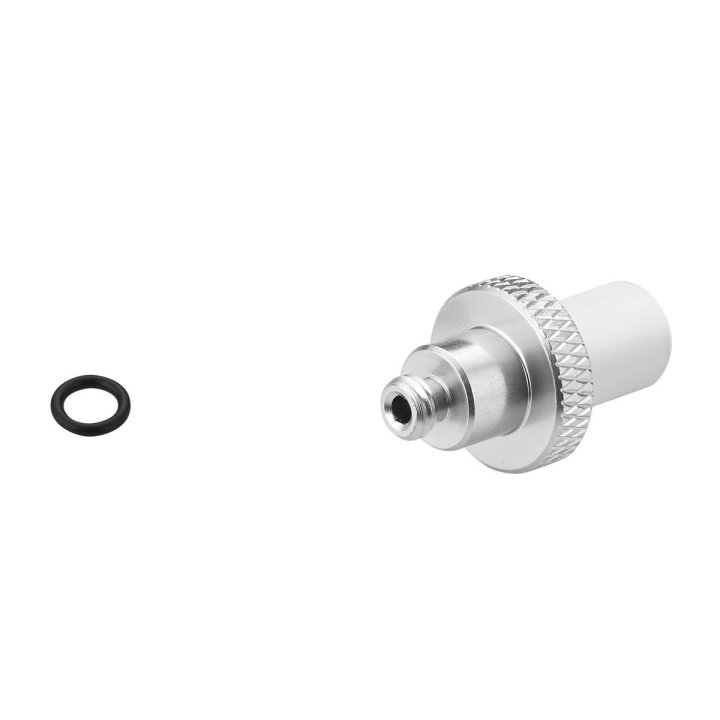

Chihiros CO2 vara-keramiikkadiffuusori External

The porous ceramic element converts pressurised CO₂ into a fine mist directly within the external filter’s return flow. Over time, mineral deposits, biofilm and debris may obstruct its pores, resulting in larger bubbles, uneven atomisation and increased pressure requirements.

Replacing the ceramic restores the performance of the existing diffuser without requiring an entirely new inline unit.

Key features

• Original Chihiros replacement ceramic
• Designed for External CO₂ Diffusers
• Compatible with M, 12/16 mm
• Compatible with L, 16/22 mm
• Compatible with XL, 19/25 mm
• Restores fine and even CO₂ mist
• Supports efficient gas dissolution
• High-quality porous ceramic
• Threaded installation
• Matching seal included
• Suitable for pressurised CO₂ systems
• Extends the service life of the external diffuser
• Product number: 158.0163.01
• EAN: 4043366500339

Technical information

• Product: Chihiros CO₂ Replacement Ceramic Diffuser External
• Type: replacement element for an inline CO₂ diffuser
• Materials: ceramic and metal
• Installation: threaded
• Compatibility: Chihiros External CO₂ Diffuser M, L and XL
• Compatible hose versions: 12/16, 16/22 and 19/25 mm
• Seal included: yes
• Integrated pressure control: no
• Integrated check valve: no
• Intended use: pressurised aquarium CO₂ fertilisation
• Water type: freshwater planted aquariums
• Weight: approximately 10 g
• Manufacturer: Chihiros Aquatic Studio
• Product number: 158.0163.01
• EAN: 4043366500339

Installation

1. Close the CO₂-cylinder valve.
2. Disconnect power from the solenoid.
3. Release all remaining CO₂ pressure.
4. Disconnect the external filter from the power supply.
5. Close the filter-hose valves.
6. Remove the External Diffuser from the return line.
7. Open the diffuser body.
8. Remove the old ceramic and seal.
9. Clean the thread and sealing surfaces.
10. Install the new seal.
11. Screw in the replacement ceramic by hand.
12. Do not overtighten the ceramic element.
13. Reinstall the diffuser.
14. Start water circulation before CO₂ injection.
15. Check all connections for leakage.
16. Start CO₂ at a low setting.
17. Confirm fine, even atomisation.
