KOI PRO COMBI DRUM 60.000 PUMP

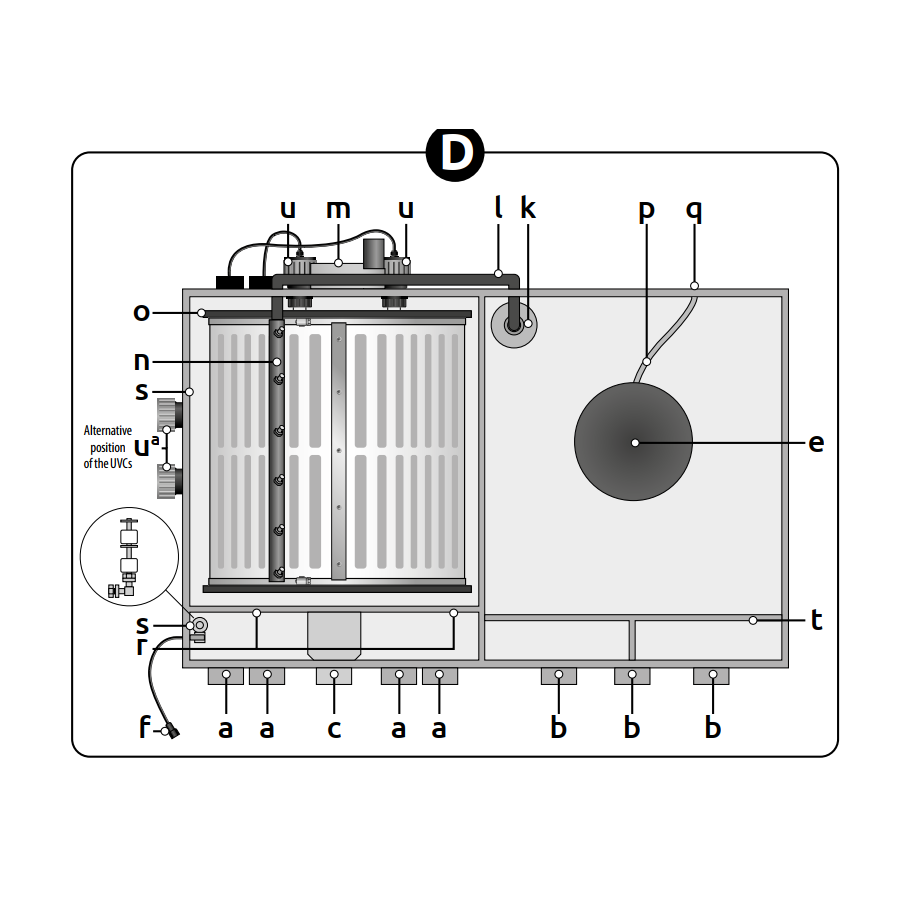

Low-maintenance self-cleaning filter, user does not need to perform daily maintenance. Features: Available as pump-fed filter and as Gravity filter. Compact design 128 x 90 x 101.5 cm with all inlets, outlets and dirty water outlet on one side of the filter. 2 x integrated 40 W High Output UVC UV can be fitted at the back or side for flexibele set-up Includes 4 cover caps to close off the UVC opening Filterbe housing made of high-quality polypropylene. Equipped with a cover that completely seals the filter. Drum filter supplied with 120 μ m hi flow sieve panel. Built-in high-pressure flushing pump (750 Watt, 4 Bar). Supplied with brass spray nozzles. Electric motor, be protected by automatic slip clutch. Biological filter chamber with built-in air diffuser disc, 8/ 12 mm air hose and quick connector for optional air pump (3600 L/h). Control box for be servicing of all electrical equipment. Automatic safety switching when there is a problem with the water level in the filter. Made in the Netherlands.

Installation

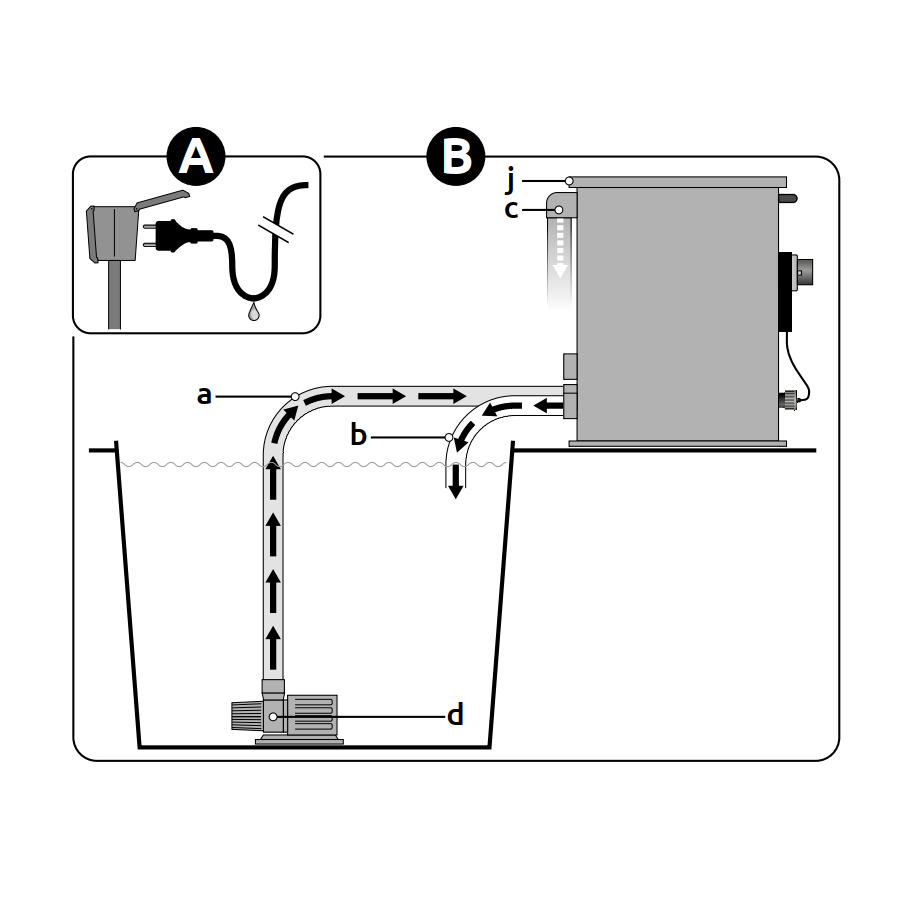

Fig. B Determine the location of the filter. Provide a dry sheltered place (not in direct sunlight) and a stable flat surface

with sufficient space around for maintenance.

• NOTE! Ensure that the filter is fully supported, level and above the water level of the pond.

• Place a suitable pump (max. pump capacity 30,000 L/h) preferably in the deepest part of the pond.

• Connect the pump to one of the inlets (a) (ø 110 mm) of the filter using a flexible socket. Close the other inlets with

flexible eindcaps.

• NOTE! The pipe connections (ø 110 mm) on the filter can NOT be glued, use flexible rubber sockets.

• Connect the outlets (b) (ø 110 mm) to the return line to the pond using flexible sockets.

• Connect the drain channel (c) (ø 110 mm) to a drain (e.g. sewer) using a flexible socket.
