Aqua Medic Ocean Clear Roll Filter

Aquarium water passes through a fine filter fleece that captures suspended debris. As the fleece accumulates dirt, water resistance increases and the internal level rises. The sensor activates the motor, winding the dirty material onto the collection roller and exposing a clean section.

The automatic process maintains reliable mechanical filtration while reducing the work associated with cleaning or replacing conventional filter socks.

Key features

• Automatic fleece-roll filter
• Suitable for marine and freshwater aquariums
• Recommended for systems up to approximately 850 litres
• Removes suspended particles and organic debris
• Helps limit the formation of nitrate and phosphate
• Automatic water-level-controlled fleece advance

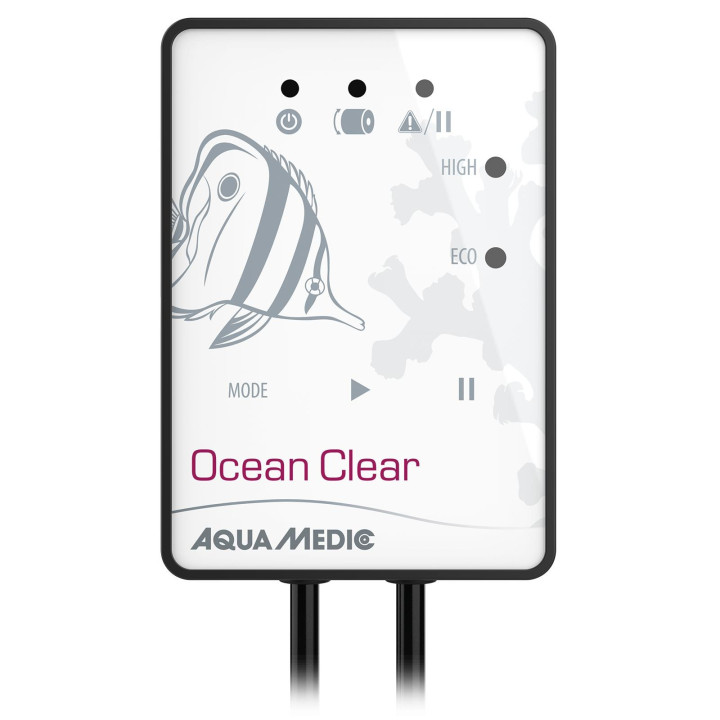

• Two filtration modes
• Approximately 40-metre fleece roll
• Compact acrylic construction
• Delivered pre-assembled

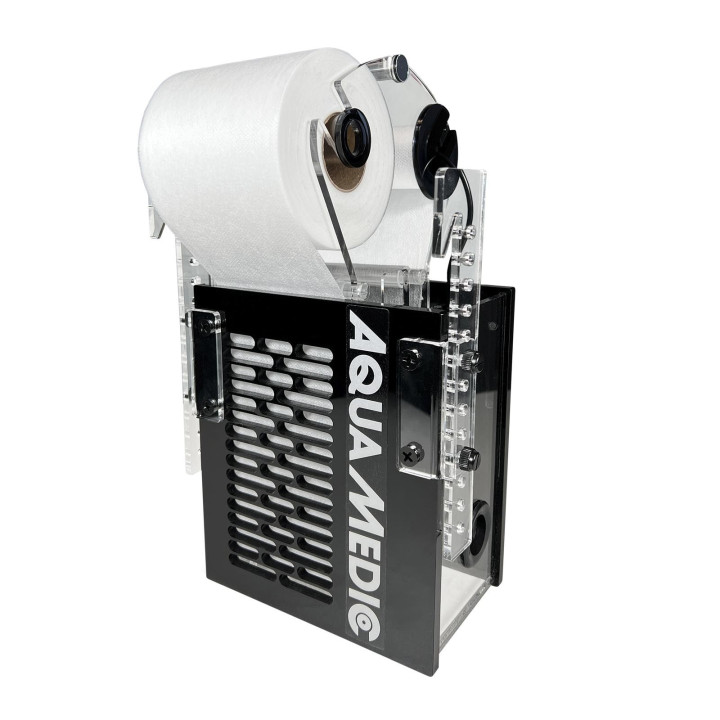

• Height-adjustable mounting bracket
• Bracket can be fitted on all four sides
• Suitable for compact sumps
• Bypass or separate-pump installation
• Excellent complement to a protein skimmer
• Easy fleece-roll replacement
• Designed exclusively for in-sump operation

Technical information

• Product: Aqua Medic Ocean Clear
• Product type: automatic fleece-roll filter
• Maximum aquarium volume: approximately 850 l
• Dimensions: approximately 180 × 160 × 325 mm
• Fleece-roll length: approximately 40 m
• Automatic roll advance: yes
• Water-level sensor: yes
• Filtration modes: 2

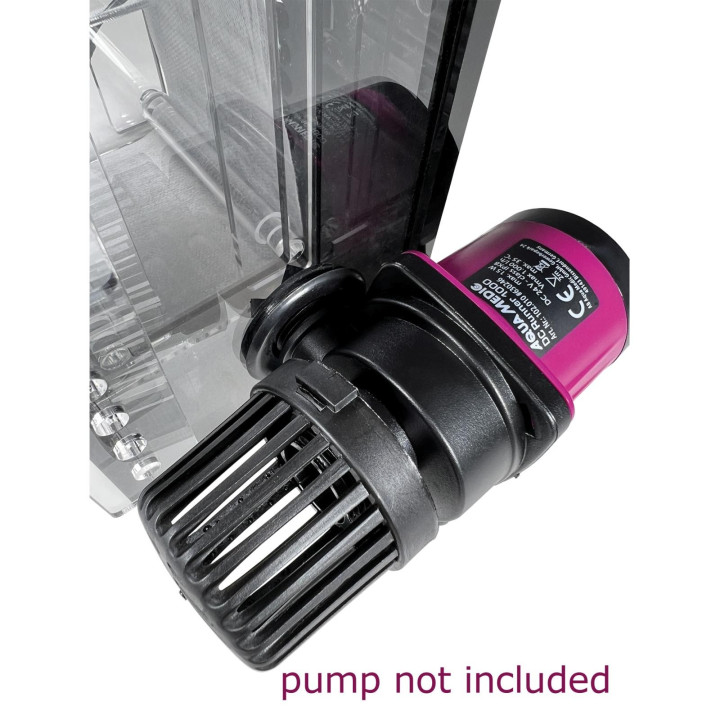

• Recommended optional pump: Aqua Medic DC Runner 800 or 1000
• Power-supply input: 100–240 V AC, 50/60 Hz
• Power-supply output: 12 V DC / 1 A
• Installation: inside a sump only
• Product number: 408.010
• EAN: 4025901147421

Installation

1. Disconnect sump equipment from power.
2. Confirm sufficient space for the filter and future roll changes.
3. Choose bypass or separate-pump operation.
4. Attach the adjustable bracket to the most suitable side.
5. Suspend the filter securely inside the sump.
6. Adjust the installation height according to the manual.

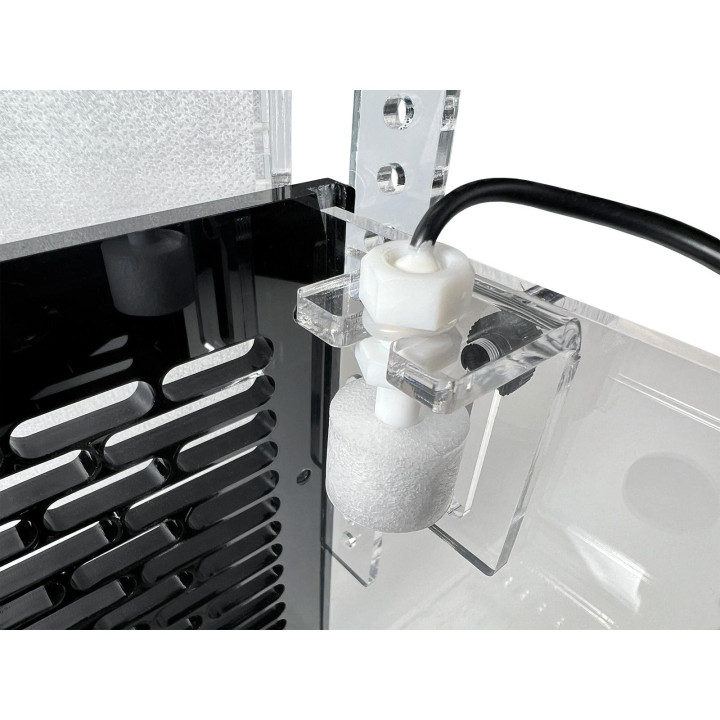

7. Install the level sensor.

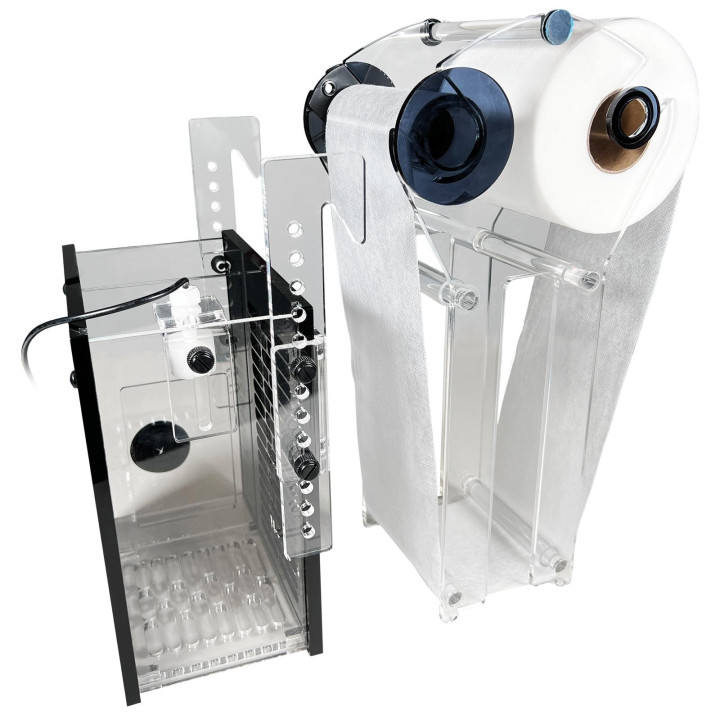

8. Install the clean and collection rollers.
9. Route the fleece through the filter correctly.
10. Connect the bypass plumbing or separate pump.
11. Position the controller in a dry, splash-protected location.
12. Create drip loops in all electrical cables.
13. Start the water circulation.
14. Check for leaks and safe sump water levels.
15. Connect the Ocean Clear power supply.
16. Test manual and automatic fleece advance.
17. Monitor the system closely during initial operation.
