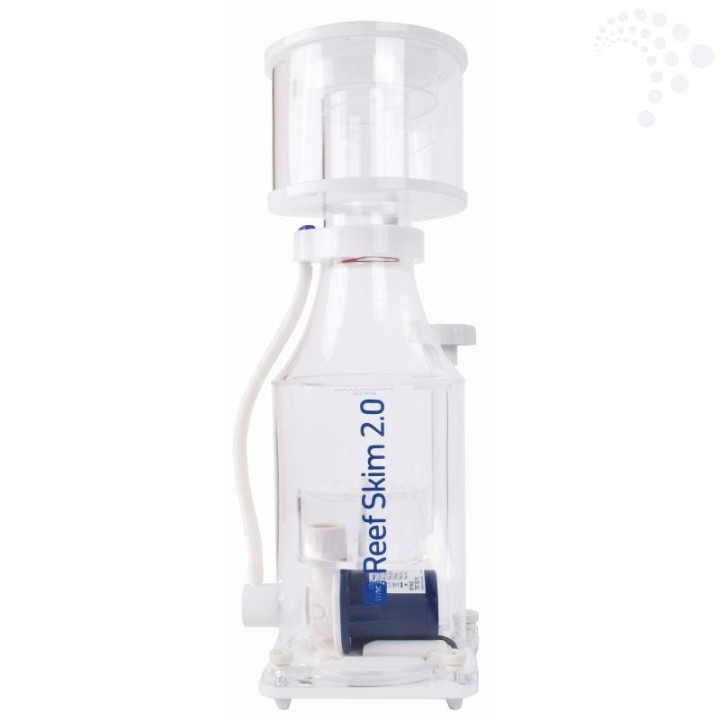

TMC Reef Skim 2.0 750 DC protein skimmer

TMC Reef Skim 2.0 750 DC is a sump-mounted protein skimmer designed to manage dissolved organic waste in marine and reef aquariums. Its compact construction combines substantial skimming capacity, quiet operation, and extremely low energy consumption.

Fine air bubbles attract proteins, fats, and other dissolved organic compounds. These substances rise with the foam column and collect inside the removable collection cup.

Removing organic compounds before decomposition helps limit nitrate and phosphate formation while supporting clear, oxygen-rich aquarium water.

The skimmer is suitable for marine systems from approximately 500 to 750 litres, depending on biological load. Heavily stocked, intensively fed, or SPS-dominated aquariums should be sized towards the lower end of the recommended range.

Adjustable Reef Pump SK DC

The compact Reef Pump SK DC provides electronically adjustable performance. The pump output can be matched to aquarium load, sump conditions, and the desired wet or dry skimming result.

Power consumption ranges from approximately 2.6 to 10 W. The pump operates at 12 V DC with a maximum current of approximately 0.8 A.

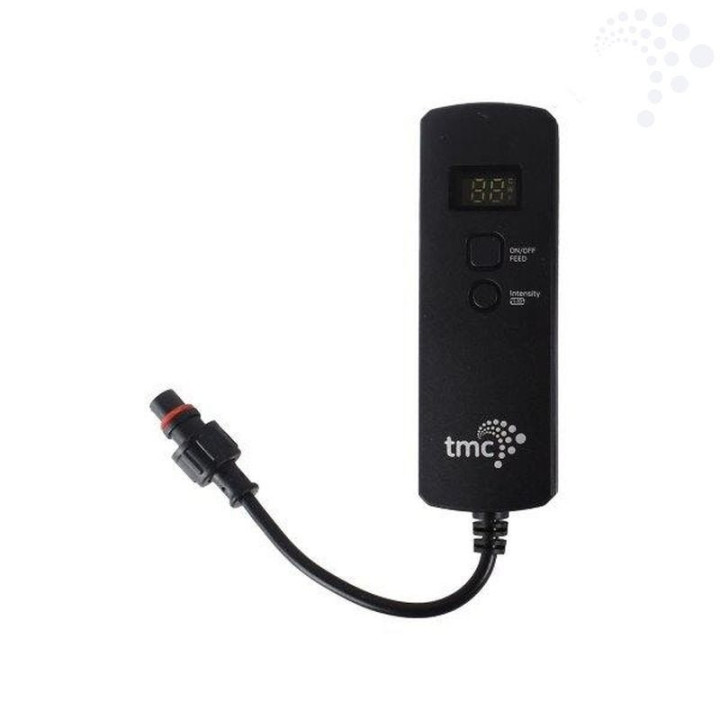

Electronic controller and feeding mode

The supplied controller provides accurate output adjustment without mechanically restricting water flow.

The feeding mode pauses the pump temporarily, helping prevent coral foods and supplements from being removed immediately. The pump returns to normal operation after the feeding pause.

Bubble-diffusion plate

The high-performance diffusion plate distributes fine bubbles evenly throughout the reaction chamber. It reduces turbulence, stabilizes the foam column, and maximizes air-to-water contact.

In-base water outlet

Processed water exits through the base instead of a protruding side pipe. This design extends contact time, reduces operating noise, helps limit escaping microbubbles, and minimizes the required sump footprint.

Quiet operation

The integrated air-intake silencer reduces venturi noise. The adjustable DC pump, balanced bubble plate, and in-base outlet provide quiet operation in living spaces and other noise-sensitive installations.

Ultra-compact footprint

The skimmer measures approximately 139 × 139 × 443 mm. Its compact footprint preserves valuable sump space for return pumps, media reactors, heaters, and other filtration equipment.

Easy maintenance

The pump can be removed quickly for cleaning. Regularly clean the pump intake, impeller, impeller chamber, venturi, air hose, silencer, bubble plate, reaction chamber, collection-cup neck, and water outlets.

Key features

• Adjustable protein skimmer for marine aquariums
• Recommended for systems from approximately 500 to 750 litres
• Suitable for fish, coral, and reef aquariums
• Compact Reef Pump SK DC
• Electronic output adjustment
• Integrated feeding mode
• Power consumption of approximately 2.6–10 W
• Operating voltage of 12 V DC
• Maximum current of approximately 0.8 A
• Energy-efficient continuous operation
• CNC-precision construction
• High-performance bubble-diffusion plate
• Even distribution of fine bubbles
• Stable foam column
• In-base water outlet
• Extended air-to-water contact time
• Designed to reduce escaping microbubbles
• Integrated air-intake silencer
• Quiet operation
• Ultra-compact 139 × 139 mm footprint
• Total height of approximately 443 mm
• Quick-release pump
• Easy maintenance
• Designed for sump installation
• Product number 3382

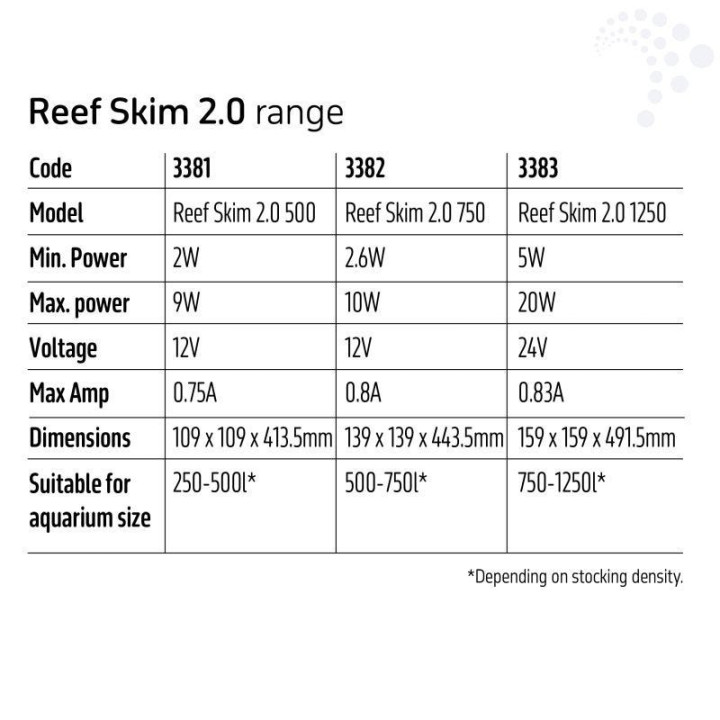

Technical information

• Product: TMC Reef Skim 2.0 750 DC
• Product number: 3382
• Recommended aquarium volume: approximately 500–750 l
• Recommended volume: approximately 130–200 US gal
• Pump: adjustable Reef Pump SK DC
• Power consumption: 2.6–10 W
• Operating voltage: 12 V DC
• Maximum current: 0.8 A
• Dimensions: approximately 139 × 139 × 443 mm
• Installation: inside a sump
• Control: electronic output adjustment and feeding mode

Package contents

• TMC Reef Skim 2.0 750 DC protein skimmer
• Reef Pump SK DC
• Electronic pump controller
• Power supply
• Collection cup and lid
• Air-intake silencer
• Air hose
• Bubble-diffusion plate
• Model-specific installation components
• Operating and safety instructions

Installation and setup

1. Reserve at least 139 × 139 mm of sump floor space.
2. Leave sufficient clearance above the skimmer.
3. Position the unit on a stable and level base.
4. Confirm the recommended sump water depth in the instructions.
5. Use a stable seawater-resistant platform when required.
6. Install the pump, bubble plate, and collection cup.
7. Connect the air hose and silencer.
8. Position the controller and power supply in a dry location.
9. Create a drip loop in the power cable.
10. Start the pump at a moderate setting.
11. Allow the skimmer to run in before final adjustment.
12. Increase the output gradually according to aquarium load.
13. Set the foam level for wet or dry skimming.
14. Monitor the collection cup closely during initial operation.
15. Clean the cup, air intake, and pump regularly.
16. Disconnect the equipment before maintenance.
