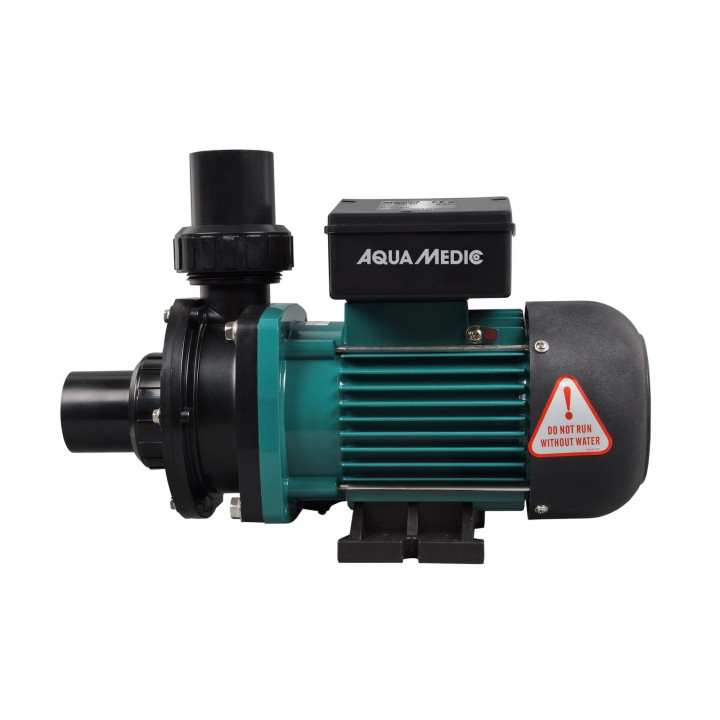

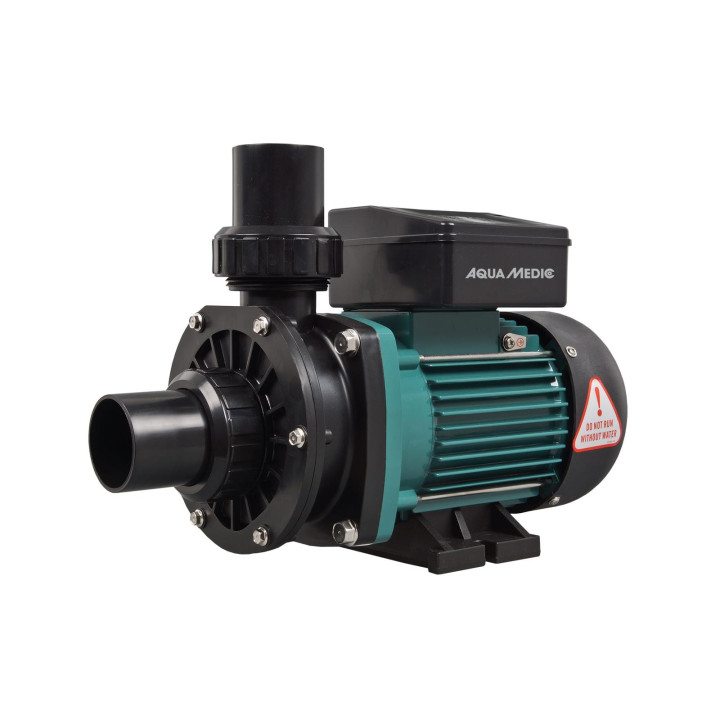

Circulation pump AM PRO 50, 75, 100



The circulation pumps in the AM PRO series are powerful with high performance. They have low energy consumption and operate at a low decibel volume. Minimal maintenance is necessary. The AM PRO pumps have a plastic housing. The axle is sealed with a mechanical seal. The pumps must be dry mounted.



Features:

- Asynchronous, two-pole motor

- Protection type IP X5

- Integrated overload protection

- Highly effective cooling element for optimal heat dissipation

- Not self-extracting



 Type  AM PRO 50
 AM PRO 75
AM PRO 100
 Power (KW) app.  0.55  0.75  0.90
 Power (PS) app.  0.50  0.75  1.00
 Power consumption (A) app.  2.5  3.5  4.7
 Power supply  220-230 V / 50 Hz
 Protection class  IP X5
 Sound level (dB) app.  60  60  65
 Connections suction and pressure side  1.5"/50 mm  1.5"/50 mm  1.5"/50 mm
 Weight (kg) app.  7.3  8.2  9.1

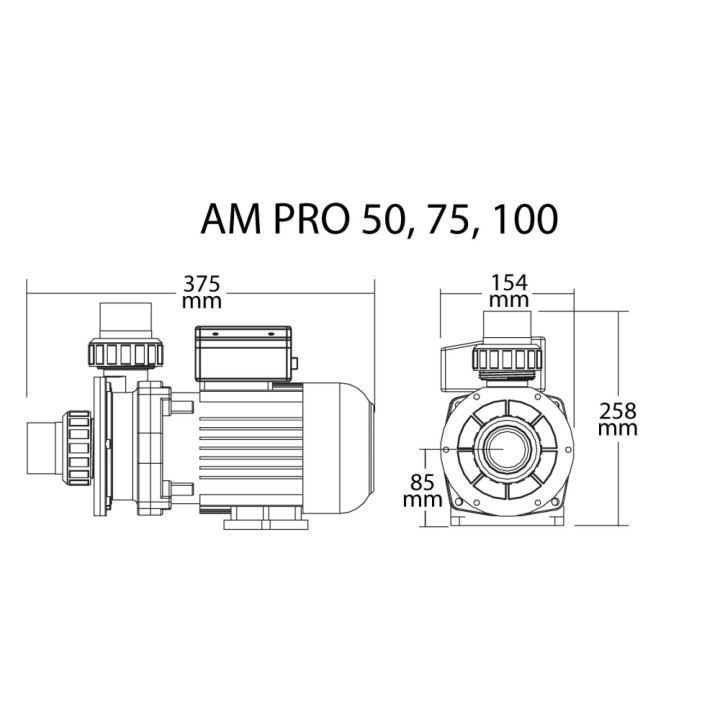

 Dimensions (l x w x h) mm, app.  375 x 154 x 258

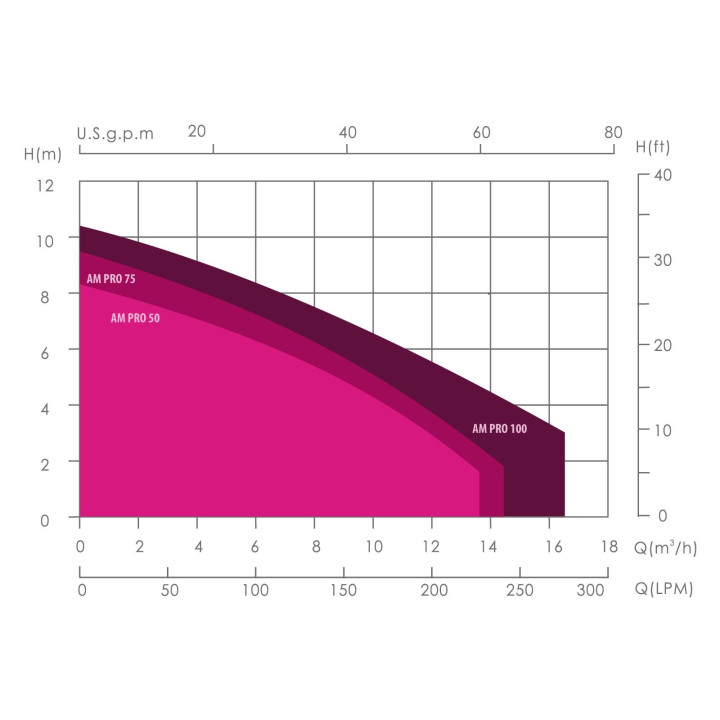

 Flow rate
 m3/h at 2 m pumping head  13.2  14.4  17.0
 m3/h at 4 m pumping head  10.3  11.3  13.6
 m3/h at 6 m pumping head  6.6  8.6  9.8
 m3/h at 8 m pumping head  1.0  4.0  5.1

A motor protection switch is necessary for the operation of the pump.

The guarantee is void if the pump is used without a motor protection switch.
