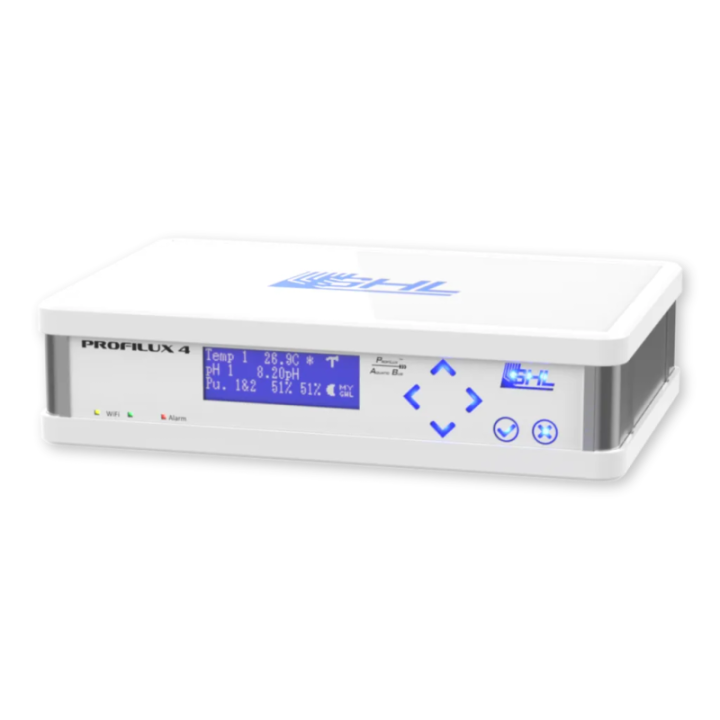

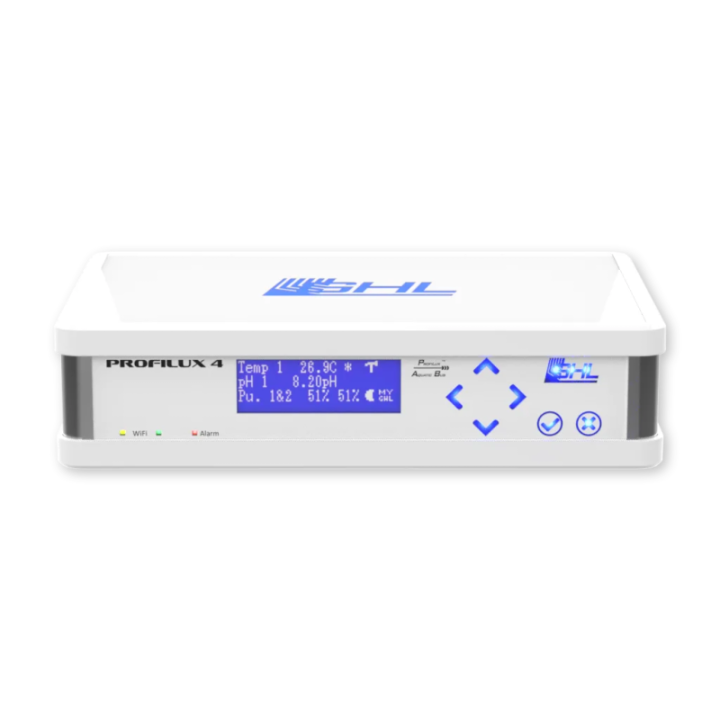

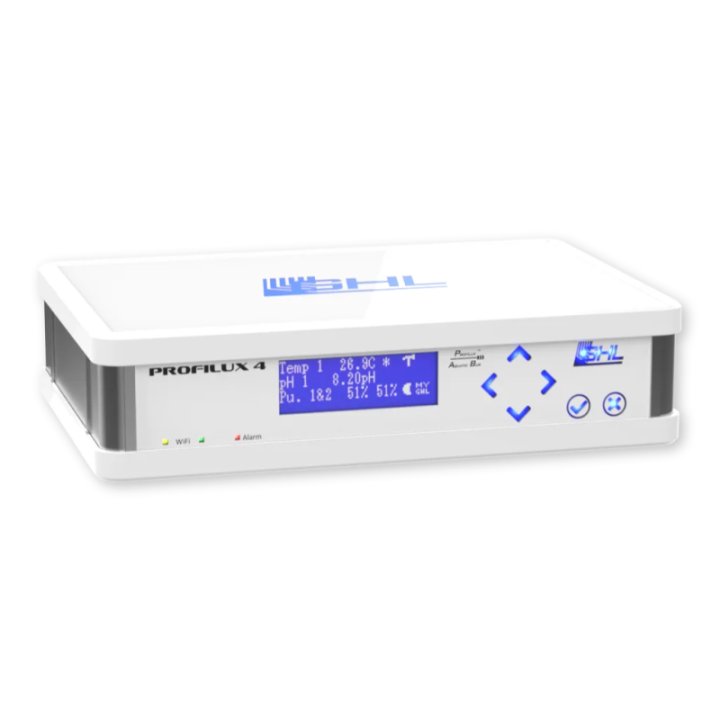

GHL ProfiLux 4.1e

GHL ProfiLux 4.1e is a cost-effective entry into professional aquarium automation. It uses the same reliable ProfiLuxOS platform and expandable GHL ecosystem as ProfiLux 4.1 but includes only temperature and a combined pH/ORP measurement input as standard.

Conductivity and salinity monitoring can be added later with an expansion card. This keeps the initial investment lower while preserving extensive upgrade options.

Core monitoring and automation operate locally without requiring a continuous internet or cloud connection.

Integrated measurements

Standard measurement support includes:

• Digital water temperature
• pH or redox/ORP

The combined measurement input is configured for either a pH probe or a redox probe. Simultaneous pH and redox monitoring requires an additional expansion card or Expansion Box.

Conductivity measurement can be added later with a compatible expansion card.

Aquarium automation

With compatible GHL accessories, ProfiLux 4.1e can manage:

• Heating and cooling
• Automatic top-off
• Automatic water changes
• Leak detection
• Flow monitoring
• Lighting programs
• Variable-speed pumps
• Protein-skimmer safety
• Liquid dosing
• Feeding and maintenance modes

Lighting and pump control

Depending on the system configuration, ProfiLux 4.1e supports:

• Up to 32 lighting channels
• Up to 16 stream or return-pump channels
• Up to 32 dosing channels

Lighting functions can include sunrise, sunset, moon phases, clouds, thunderstorms, seasonal changes, and acclimation.

Pump functions can include variable flow, wave simulation, night reduction, feeding pauses, maintenance modes, and safety shutdown.

WiFi, LAN, and USB

ProfiLux 4.1e provides WiFi, Ethernet, and USB connectivity. Wired LAN offers a stable network option for demanding home and professional installations.

The controller supports GHL Connect, the integrated webserver, GHL Control Center, and myGHL.

OTA firmware updates

Firmware can be installed over WiFi or Ethernet without connecting the controller to a computer using USB.

Expandable design

Three internal expansion-card slots support additional measurement and control functions. The system can also be expanded with:

• GHL Powerbars
• GHL Doser units
• Expansion Box 2
• KH Director
• ION Director
• Level, leak, and flow sensors

The ProfiLux 4.1e has no built-in S-ports. Switchable mains sockets are added through PAB-connected Powerbar units.

Key features

• Expandable aquarium controller
• Suitable for freshwater and marine aquariums
• Suitable for planted and reef aquariums
• Integrated digital temperature measurement
• One combined pH or redox/ORP input
• Conductivity measurement available by expansion card
• Built-in WiFi
• Built-in Ethernet
• USB connectivity
• OTA firmware updates
• Local operation without cloud dependency
• GHL Connect
• GHL Control Center
• myGHL remote access
• Up to 32 lighting channels
• Up to 16 pump-control channels
• Up to 32 dosing channels
• Automatic top-off support
• Automatic water-change support
• Leak and flow monitoring
• Feeding and maintenance modes
• Configurable alarms
• Measurement-data logging
• Three expansion-card slots
• ProfiLux Aquatic Bus
• Compatible with GHL Powerbars and Dosers
• Compatible with KH Director and ION Director
• No built-in S-ports
• Developed and manufactured in Germany

Technical information

• Product: GHL ProfiLux 4.1e
• Product number: PL-2436-VAR
• Standard measurements: temperature and pH or redox/ORP
• Conductivity: available with an expansion card
• Lighting control: up to 32 channels
• Pump control: up to 16 channels
• Dosing control: up to 32 channels
• Expansion-card slots: 3
• Connectivity: WiFi, Ethernet, and USB
• Firmware updates: OTA through WiFi or Ethernet
• System bus: ProfiLux Aquatic Bus
• Built-in S-ports: none
• Colours: black and white
• Country of manufacture: Germany

Package contents

• GHL ProfiLux 4.1e
• Country-specific power supply
• Laboratory-grade digital water-temperature sensor
• USB cable
• Redox zero-point calibration plug
• Operating and safety instructions

The pH or redox probe, conductivity probe, calibration fluids, Powerbar, and PAB cables are sold separately unless included in a specific Controller Set.

Installation and setup

1. Install the controller in a dry, splash-protected location.
2. Connect the included digital temperature sensor.
3. Connect the selected pH or redox probe.
4. Position the probes in steadily circulating water.
5. Keep probes away from air bubbles and dosing outlets.
6. Calibrate the measurement probe.
7. Connect a GHL Powerbar through PAB when required.
8. Connect additional PAB devices and expansion cards.
9. Assign sensors, sockets, pumps, and dosing channels.
10. Configure target values, hysteresis, and alarms.
11. Configure feeding and maintenance modes.
12. Connect ProfiLux to WiFi or Ethernet.
13. Configure GHL Connect and myGHL.
14. Test every measurement, control function, and safety routine.
15. Back up the configuration.
