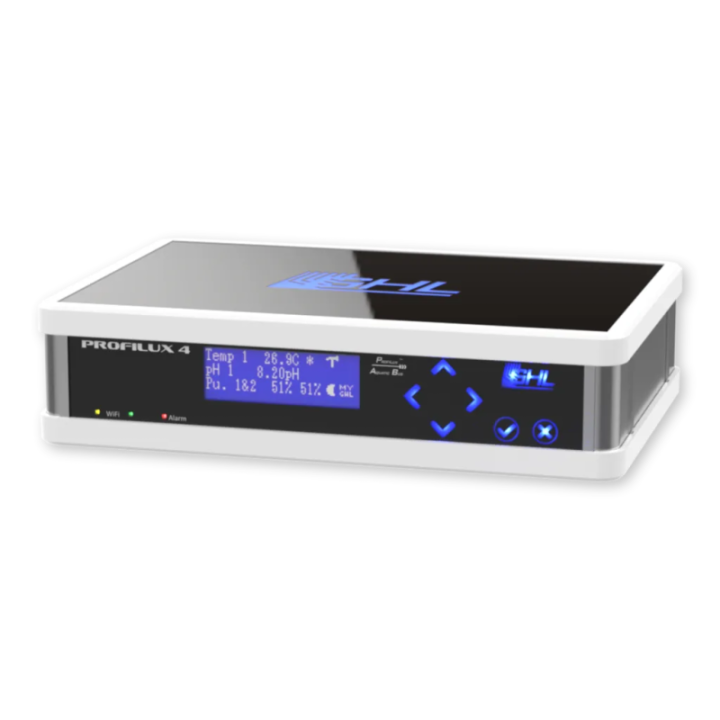

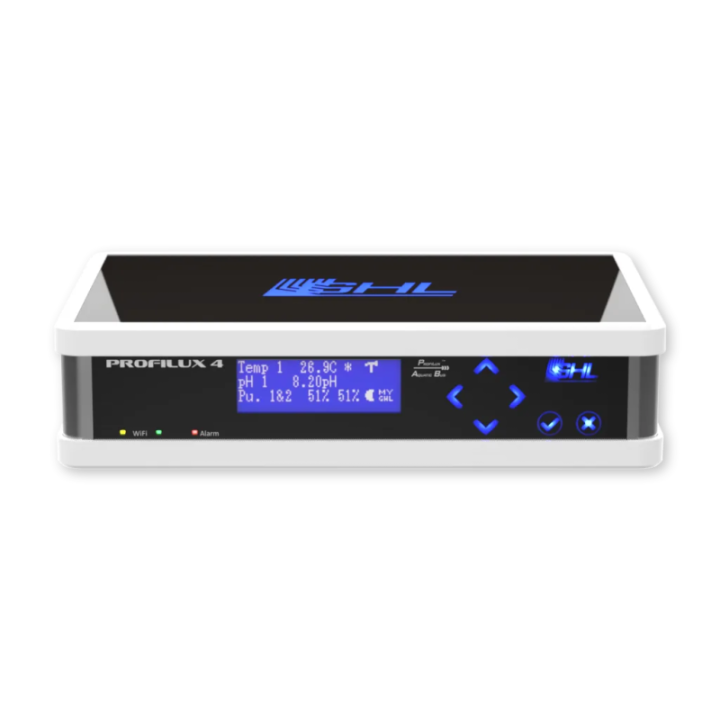

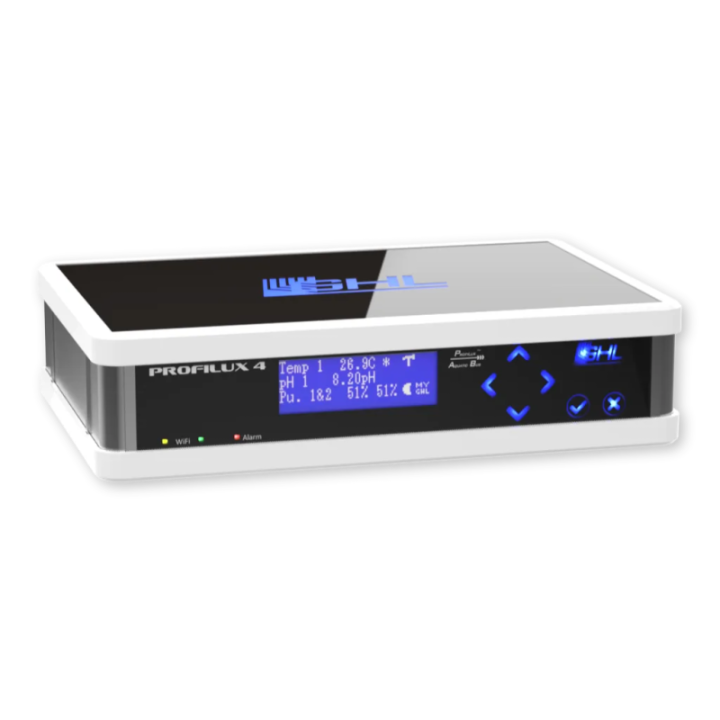

GHL ProfiLux 4e

GHL ProfiLux 4e is the Essential version of the ProfiLux 4 controller platform. It provides the core automation, monitoring, and safety functions of the ProfiLux ecosystem while allowing additional measurement capabilities to be added later.

Standard measurement support includes digital water temperature and either pH or redox/ORP. Conductivity and marine salinity monitoring can be added using a compatible expansion card or Expansion Box.

Core automation operates locally under ProfiLuxOS without requiring continuous internet or cloud access.

Measurement and control

Standard measurement support:

• Digital water temperature
• pH or redox/ORP

The combined probe input can be configured for one measurement type at a time. Simultaneous pH and redox monitoring requires an additional measurement interface.

Aquarium automation

With compatible GHL accessories, ProfiLux 4e can manage:

• Heating and cooling
• Automatic top-off
• Automatic water changes
• Leak detection
• Flow monitoring
• Lighting programs
• Variable-speed pumps
• Protein-skimmer safety functions
• Liquid dosing
• Feeding and maintenance modes

Expandable architecture

Three internal expansion-card slots can add conductivity, additional pH or redox measurement, oxygen measurement, level connections, control interfaces, and other functions.

ProfiLux Aquatic Bus supports GHL Powerbars, Dosers, Expansion Boxes, KH Director, and ION Director.

Key features

• Expandable aquarium controller
• Suitable for freshwater and marine aquariums
• Suitable for planted and reef aquariums
• Integrated digital temperature measurement
• One combined pH or redox/ORP input
• Conductivity available through expansion
• Built-in WiFi
• USB connectivity
• Local operation without cloud dependency
• GHL Connect
• GHL Control Center
• myGHL remote access
• Up to 32 lighting channels
• Up to 16 pump-control channels
• Up to 32 dosing channels
• Automatic top-off support
• Automatic water-change support
• Leak and flow monitoring
• Feeding and maintenance modes
• Configurable alarms
• Measurement-data logging
• Three expansion-card slots
• ProfiLux Aquatic Bus
• Compatible with GHL Powerbars and Dosers
• Compatible with KH Director and ION Director
• Developed and manufactured in Germany

Technical information

• Product: GHL ProfiLux 4e
• Standard measurements: temperature and pH or redox/ORP
• Conductivity: available through an expansion card
• Lighting control: up to 32 channels
• Pump control: up to 16 channels
• Dosing control: up to 32 channels
• Expansion-card slots: 3
• Connectivity: WiFi and USB
• System bus: ProfiLux Aquatic Bus
• Built-in Ethernet: no
• OTA firmware updates: no
• Country of manufacture: Germany

Package contents

• GHL ProfiLux 4e
• Country-specific power supply
• Laboratory-grade digital water-temperature sensor
• USB cable
• Redox zero-point calibration plug
• Operating and safety instructions

The pH or redox probe, conductivity probe, calibration fluids, Powerbar, and PAB cables are sold separately unless included in a specific Controller Set.

Installation and setup

1. Install the controller in a dry, splash-protected location.
2. Connect the included digital temperature sensor.
3. Connect the selected pH or redox probe.
4. Position the probes in steadily circulating water.
5. Keep probes away from air bubbles and dosing outlets.
6. Calibrate the selected measurement probe.
7. Connect a GHL Powerbar through PAB when required.
8. Connect additional PAB devices and expansion cards.
9. Assign sensors, sockets, pumps, and dosing channels.
10. Configure target values, hysteresis, and alarms.
11. Configure feeding and maintenance modes.
12. Connect ProfiLux to WiFi.
13. Configure GHL Connect and myGHL.
14. Test every measurement, control function, and safety routine.
15. Back up the configuration.
