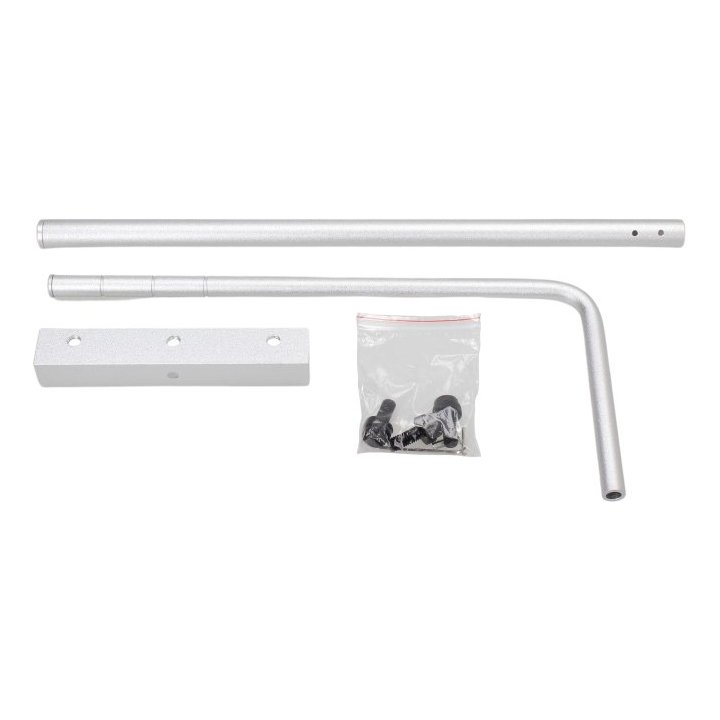

Chihiros mounting stand, aluminum real-glass

The aluminium mounting stand provides the benefits of suspended aquarium lighting without requiring ceiling installation. It attaches directly to the aquarium rear glass and supports a compatible LED light with the appropriate suspension cables.

The adjustable height and three suspension grooves allow the position and light spread to be adapted to the aquarium. The stand is particularly suitable for open, rimless planted aquariums and aquascaping displays.

Key features

• Rear-glass aquarium-lighting stand
• Manufactured from aluminium alloy
• Dark-grey finish
• Requires no ceiling drilling
• Adjustable height of approximately 41–47 cm
• Horizontal-arm length of approximately 32 cm
• Three suspension-cable grooves
• Groove positions at approximately 3, 6, and 9 cm
• Mounting-bracket width of approximately 15 cm
• Suitable for 5–15 mm aquarium glass
• Frees the aquarium side rims
• Improves maintenance and plant-trimming access
• Suitable for open and rimless aquariums
• Compatible with several Chihiros light ranges
• Two stands generally required for bar-style lights
• Light and suspension cables sold separately

Installation

1. Confirm the light weight and suspension method.
2. Determine whether one or two stands are required.
3. Measure the aquarium-glass thickness.
4. Inspect and clean the rear-glass mounting area.
5. Assemble the stand according to its instructions.
6. Position the glass-protection components correctly.
7. Attach the stand to the rear glass.
8. Tighten the clamp evenly without overtightening.
9. Install the second stand when required.
10. Confirm that both stands are vertical and level.
11. Attach the model-specific suspension cables.
12. Select the appropriate groove on the horizontal arm.
13. Suspend and level the light.
14. Confirm that all cables and locks are secure.
15. Route the power cable without tension.
16. Create a drip loop.
17. Inspect the complete installation regularly.
